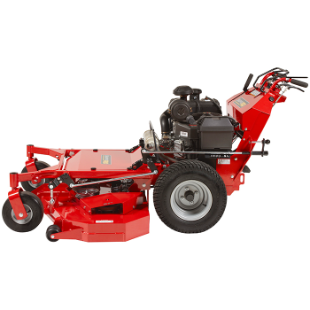

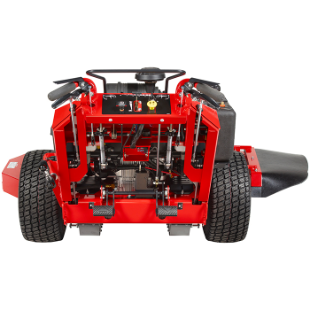

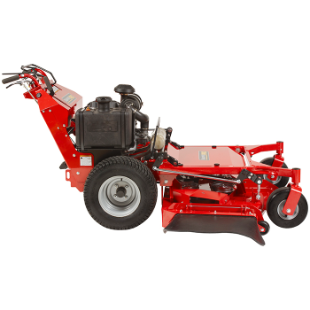

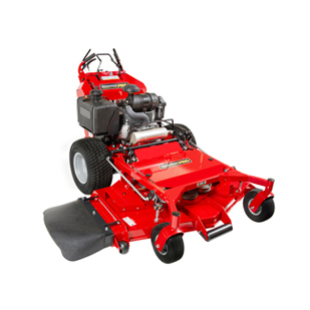

SW35

The SW35 delivers consistently accurate cutting performance for diverse conditions. Built to run sunrise to sundown, this walk-behind is a productive performer for any size mowing crew.

FIND A DEALER
snapperpro /

Product Details

No Need to Restart

Need to walk away from the mower to move an obstacle or debris? The PTO switch allows the operator to stop the mower blades in a single step – simply put the machine in neutral and release the controls. The blades will disengage while the engine continues to run.

CC Centralized Controls

The design of the CC Centralized Controls places the operator's hands in the ideal position to access all in-demand controls. Ergonomic operator presence, steering and reverse levers on both handles operate with a light touch to reduce operator fatigue. (on select models)

Neutral Positioned Centrally

Centralized foot control for neutral position provides the operator with a more natural control. The neutral position is identified on the speed indicator on the dash.

Set Your Speed

Reliably set your speed with the improved easy-to-reach cruise control bar featuring a convenient speed indicator.

Protects and Delivers

Heavy-duty transmission guards reduce build up of debris to improve air flow and allow for access to the filter for maintenance.

Improved Deck Mounting

The mower deck mounting system provides easier deck leveling, improved flexibility over terrain and more durable wear points for reduced maintenance.

Easily Secure Equipment

Dedicated tie-down points, located in front and rear, make securing equipment convenient.

Longer Belt Life

Deck drive belt system is designed to provide even belt tension which improves the life of the belt and reduces maintenance.

Solid Construction

Robust 1/4" engine deck construction provides mounting area for sulky attachments.

Easy Reach Brake

Brake handle is conveniently located beside the control panel. Lever requires minimal operator effort to engage.

Engine Brand Kawasaki® FX651V
HP (gross) * 20.5
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5
Transmission Commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-7
Ground Speed-Rev (mph) 0-3
Cutting Width (in) 52
Height-of-Cut (in) 1.5 - 4.75
Deck Construction 10-gauge, fabricated
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5" x 2", 11-gauge
Bearings Greaseable tapered caster roller bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1
Drive Tires (in) 20 x 8-10
Caster Tires (in) 11 x 4-5 Flat-Free
Overall Length (in) 75
Overall Width (in.) deflector down / deflector up (model) 67/57
Dry Weight (lbs) 814
Instrumentation Hour meter, speed indicator
Controls/Safety Group Operator presence, centralized foot activated neutral pedals, neutral start safety circuit / CC™ (centralized controls) or standard controls
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, battery, blades: 90 days

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



Engine Brand Kawasaki® FX651V
HP (gross) * 20.5
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5
Transmission Commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-7
Ground Speed-Rev (mph) 0-3
Cutting Width (in) 48
Height-of-Cut (in) 1.5 - 4.75
Deck Construction 10-gauge, fabricated
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5" x 2", 11-gauge
Bearings Greaseable tapered caster roller bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1
Drive Tires (in) 20 x 7-10
Caster Tires (in) 11 x 4-5 Flat-Free
Overall Length (in) 75
Overall Width (in.) deflector down / deflector up (model) 62.5/49.5
Dry Weight (lbs) 809
Instrumentation Hour meter, speed indicator
Controls/Safety Group Operator presence, centralized foot activated neutral pedals, neutral start safety circuit / CC™ (centralized controls) or standard controls
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, battery, blades: 90 days

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



Engine Brand Kawasaki® FX651V
HP (gross) * 20.5
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5
Transmission Commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-7
Ground Speed-Rev (mph) 0-3
Cutting Width (in) 52
Height-of-Cut (in) 1.5 - 4.75
Deck Construction 10-gauge, fabricated
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5" x 2", 11-gauge
Bearings Greaseable tapered caster roller bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1
Drive Tires (in) 20 x 8-10
Caster Tires (in) 11 x 4-5 Flat-Free
Overall Length (in) 78.75
Overall Width (in.) deflector down / deflector up (model) 67/57
Dry Weight (lbs) 814
Instrumentation Hour meter, speed indicator
Controls/Safety Group Operator presence, centralized foot activated neutral pedals, neutral start safety circuit / CC™ (centralized controls) or standard controls
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, hoses, battery, blades: 90 days

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



Engine Brand Kawasaki® FX651V
HP (gross) * 20.5
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5
Transmission Commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-7
Ground Speed-Rev (mph) 0-3
Cutting Width (in) 48
Height-of-Cut (in) 1.5 - 4.75
Deck Construction 10-gauge, fabricated
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5" x 2", 11-gauge
Bearings Greaseable tapered caster roller bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1
Drive Tires (in) 20 x 7-10
Caster Tires (in) 11 x 4-5 Flat-Free
Overall Length (in) 78.75
Overall Width (in.) deflector down / deflector up (model) 62.5/49.5
Dry Weight (lbs) 809
Instrumentation Hour meter, speed indicator
Controls/Safety Group Operator presence, centralized foot activated neutral pedals, neutral start safety circuit / CC™ (centralized controls) or standard controls
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 2-Year limited warranty commercial use, front-to-rear, parts & labor. Belts, tires, brake pads, hoses, battery, blades: 90 days

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



GRASS CATCHER

A lightweight durable fabric bag with hard plastic bottom attaches quickly. Capacity: 3.75 bushels. Fits 48" and 52" SW35 models only.

MULCH KIT

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

PROFESSIONAL LAWN STRIPER

Rubber flap system lays down grass to create patterns across the landscape.
