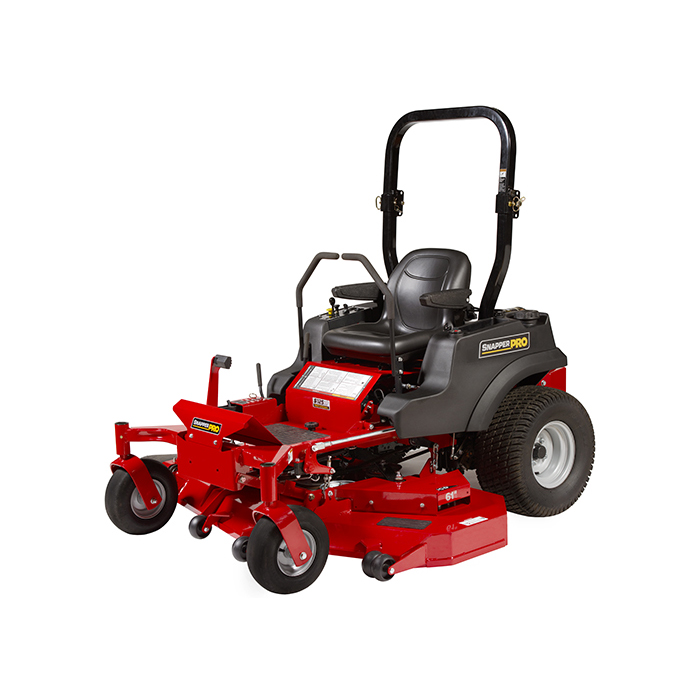

S125xt

With powerful engine choices, 52" or 61" iCD Cutting System options and speed up to 10mph, the S125xt will cut your job down to size. The heavy-duty components, including dual commercial Hydro-Gear® ZT-3400® transaxles, will keep you mowing season after season.

FIND A DEALER

Product Details

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

Designed for Commercial Use

The Briggs & Stratton Commercial Series engine features a patented advanced debris management system which deflects dirt and debris from the engine, and any remaining debris is trapped in the high-capacity, dual-sealing air cleaner cartridge

Accessibility

Quick removal of the floor pan provides easy access to the top of the deck when maintenance is needed.

Integrated Transmissions

Dual, commercial Hydro-Gear® ZT-4400® transaxels deliver unmatched power and durabilty.

Heavy-duty Spindles

Features greaseable, cast-aluminum spindles with 2.4" diameter ball bearings for longer useable life.

Foot-operated Deck Lift

The easy-to-use deck lift takes the effort out of adjusting cut height. Cutting height ranges from 1.5" - 5" in 0.25" increments.

Engine Brand Briggs & Stratton Commercial Series™
HP (gross) * 25
Displacement (cc) 724
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5.5
Transmission Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 52
Height-of-Cut (in) 1.5-5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.125 Tapered
Drive Tires (in) 22 x 11-10
Caster Tires (in) 13 x 5-6
Overall Length (in) 81
Overall Width (in.) deflector down / deflector up (model) 67.5/54.5
Dry Weight (lbs) 1059
Seat Package Mid-back seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, hoses, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Briggs & Stratton Commercial Series™
HP (gross) * 27
Displacement (cc) 810
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5.5
Transmission Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5 - 5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.125 Tapered
Drive Tires (in) 22 x 11-10
Caster Tires (in) 13 x 5-6
Overall Length (in) 81
Overall Width (in.) deflector down / deflector up (model) 77/63.5
Dry Weight (lbs) 1113
Seat Package Mid-back seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, hoses, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FS691V
HP (gross) * 23
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5.5
Transmission Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 52
Height-of-Cut (in) 1.5-5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.125 Tapered
Drive Tires (in) 22 x 11-10
Caster Tires (in) 13 x 5-6
Overall Length (in) 81
Overall Width (in.) deflector down / deflector up (model) 67.5/54.5
Dry Weight (lbs) 1059
Seat Package Mid-back seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, hoses, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FS730V
HP (gross) * 24
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5.5
Transmission Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5" - 5"
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.125 Tapered
Drive Tires (in) 22 x 11-10
Caster Tires (in) 13 x 5-6
Overall Length (in) 81
Overall Width (in.) deflector down / deflector up (model) 77/63.5
Dry Weight (lbs) 1113
Seat Package Mid-back seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FS730V EFI
HP (gross) * 25.5
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5.5
Transmission Dual, commercial Hydro-Gear® ZT-3400® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5 - 5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.125 Tapered
Drive Tires (in) 22 x 11-10
Caster Tires (in) 13 x 5-6
Overall Length (in) 81
Overall Width (in.) deflector down / deflector up (model) 77/63.5
Dry Weight (lbs) 1113
Seat Package Mid-back seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

TURBO-PRO™ DOUBLE BAG SOFT TOP COLLECTION SYSTEM

The double bag collection system is simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 8.5 cubic feet. (Available for 48'' models)

TURBO-PRO™ DOUBLE BAG HARD TOP COLLECTION SYSTEM

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 10 cubic feet. (Available for 48'' models)

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® TRIPLE BAG SOFT TOP COLLECTION SYSTEM

Simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 13 cubic feet

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® TRIPLE BAG HARD TOP COLLECTION SYSTEM

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 15 cubic feet.

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® ELECTRIC DFS COLLECTION SYSTEM

Simply flip the switch on the control panel to release the hopper right from your seat. Capacity: 13 cubic feet.

MULCH KIT

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

TRAILER HITCH KIT

Will accept a 1/2" shank ball and comes complete with hardware

LED LIGHT KIT

Energy efficient LED light kit with simple installation.

PREMIUM ADJUSTABLE SEAT

Premium adjustable seat with red trim, for added comfort.

FLAT-FREE CASTER TIRE

Run all day with no flats, eliminates downtime. Standard on select models.
