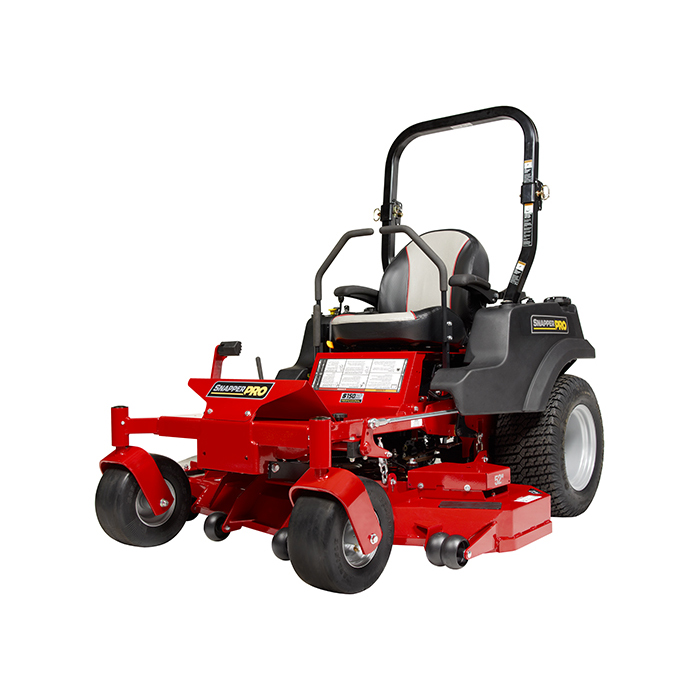

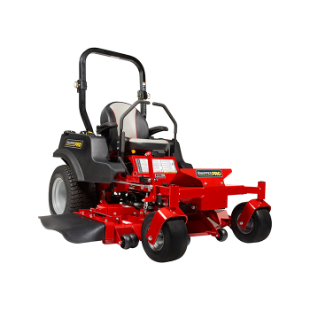

This compact yet powerful performer is designed for the serious professional who demands the ultimate in performance and durability. Get in and out of your jobs fast with the S150xt.

snapperpro /

Product Details

Powerful Engine

Vanguard™ 810 EFI engines deliver more grass cutting capability than the leading EFI engine. Up to 25% Fuel Savings.

Integrated Transmission

Dual, commercial Hydro-Gear® ZT-5400 Powertrain® Transaxles deliver unmatched power and durability.

iCD™ Cutting System

The innovative iCD Cutting System allows for better airflow, discharge and superior cut quality. (48" models)


Quick removal of the floor pan provides easy access to the top of the deck when maintenance is needed.

Operator Comfort

Premium mid-back adjustable seat with padded armrests.

Heavy-duty Spindles

Cast-iron greaseable spindles maximize usable life.

Engine Brand Kawasaki® FX730V
HP (gross) * 24
Displacement (cc) 726
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-4400® transaxles with 8.3" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 52
Height-of-Cut (in) 1.5-5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375
Drive Tires (in) 24 x 9.5-12
Caster Tires (in) 13 x 6.5-6 Pneumatic
Overall Length (in) 78
Overall Width (in.) deflector down / deflector up (model) 68/54
Dry Weight (lbs) 1141
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 180-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade, clutch safety switch, neutral and parking brake safety circuit / adjustable twin steering controls.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* All power levels are stated gross horsepower per SAE J2723 as rated by Kawasaki.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.



The double bag collection system is simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 8.5 cubic feet. (Available for 48'' models).


Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 10 cubic feet. (Available for 48'' models).
