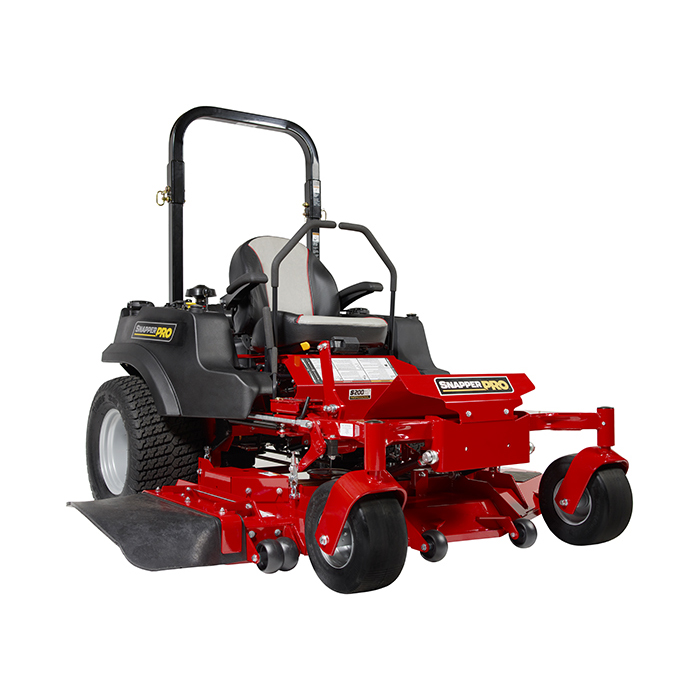

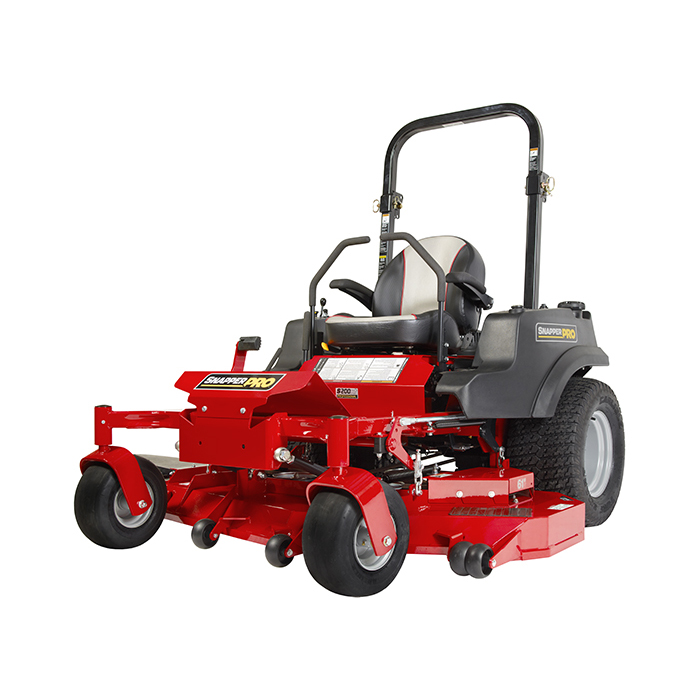

S200xt

Available with our iCDtm Cutting System deck in 61" and 72" cutting widths, the S200xt will cut your big jobs down to size. This machine delivers maximum performance and productivity.

FIND A DEALER

Product Details

Powerful Engine

Vanguard BIG BLOCK engine provides increased horsepower and more torque.

Integrated Transmissions

Dual, commercial Hydro-Gear® ZT-5400® Powertrain® transaxles deliver unmatched power and durability.

Accessibility

Quick removal of the floor pan provides easy access to the top of the deck when maintenance is needed.

Smooth Controls

Pillow block bearing on control mounts make for long lasting smooth, precision control.

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

Foot-operated Deck Lift

The easy-to-use deck lift takes the effort out of adjusting cut height. Cutting height ranges from 1.5" - 6" in 0.25" increments.

Engine Brand Briggs & Stratton Commercial Series™
HP (gross) * 27
Displacement (cc) 810
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 5
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5 - 6
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 79
Overall Width (in.) deflector down / deflector up (model) 76/63
Dry Weight (lbs) 1190
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Vanguard™ 810cc
HP (gross) * 26
Displacement (cc) 810
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 79
Overall Width (in.) deflector down / deflector up (model) 76/63
Dry Weight (lbs) 1190
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Vanguard™ 810cc EFI
HP (gross) * 28
Displacement (cc) 810
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5 - 6
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 79
Overall Width (in.) deflector down / deflector up (model) 76/63
Dry Weight (lbs) 1190
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Vanguard™ BIG BLOCK™ EFI
HP (gross) * 37
Displacement (cc) 993
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5-6
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375" Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 79
Overall Width (in.) deflector down / deflector up (model) 76/63
Dry Weight (lbs) 1190
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Vanguard™ BIG BLOCK™ EFI
HP (gross) * 37
Displacement (cc) 993
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 72
Height-of-Cut (in) 1.5 - 6
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with excellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 82
Overall Width (in.) deflector down / deflector up (model) 88/75
Dry Weight (lbs) 1424
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit.
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FX801V
HP (gross) * 25.5
Displacement (cc) 852
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 10
Transmission Dual, commercial Hydro-Gear® ZT-5400 Powertrain® transaxles with 9" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5-6
Belts Custom 5V belt with Kevlar™ cords
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail 2 x 2, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.375 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6-6.5
Overall Length (in) 79
Overall Width (in.) deflector down / deflector up (model) 76/63
Dry Weight (lbs) 1190
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 165-degree foldable
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.

** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® TRIPLE BAG SOFT TOP COLLECTION SYSTEM

Simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 13 cubic feet

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® TRIPLE BAG HARD TOP COLLECTION SYSTEM

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 15 cubic feet.

TURBO-PRO™, TURBO-PRO™ MAX OR FAST-VAC® ELECTRIC DFS COLLECTION SYSTEM

Simply flip the switch on the control panel to release the hopper right from your seat. Capacity: 13 cubic feet.

TURBO-PRO™ MAX OR FAST-VAC® EZ DUMP™ COLLECTION SYSTEM

Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 12 cubic feet.

TURBO-PRO™ MAX OR FAST-VAC® EZ DUMP XL™ COLLECTION SYSTEM

Ideal for larger jobs. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped. Capacity: 14 cubic feet.

MULCH KIT

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

TRAILER HITCH KIT

Will accept a 1/2" shank ball and comes complete with hardware

FLAT-FREE CASTER TIRE

Run all day with no flats, eliminates downtime. Standard on select models..

SUSPENSION SEAT

Suspension seat available for optimal comfort.
