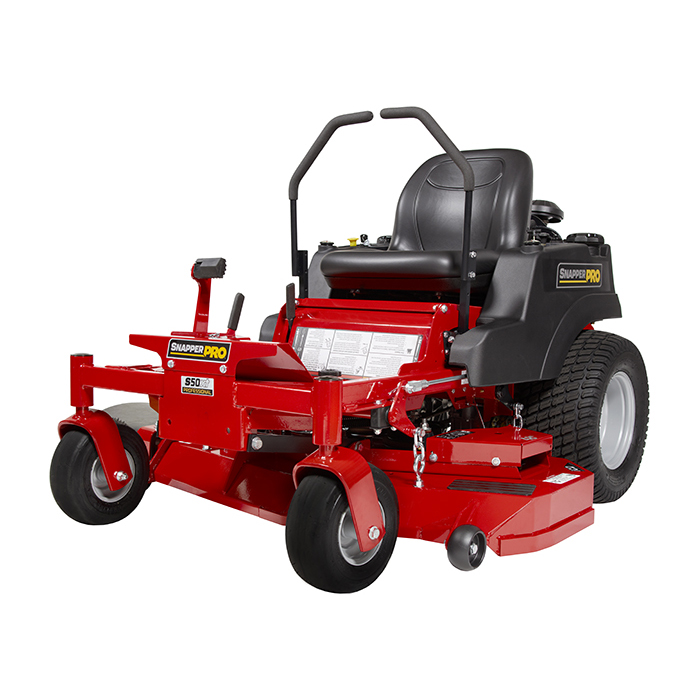

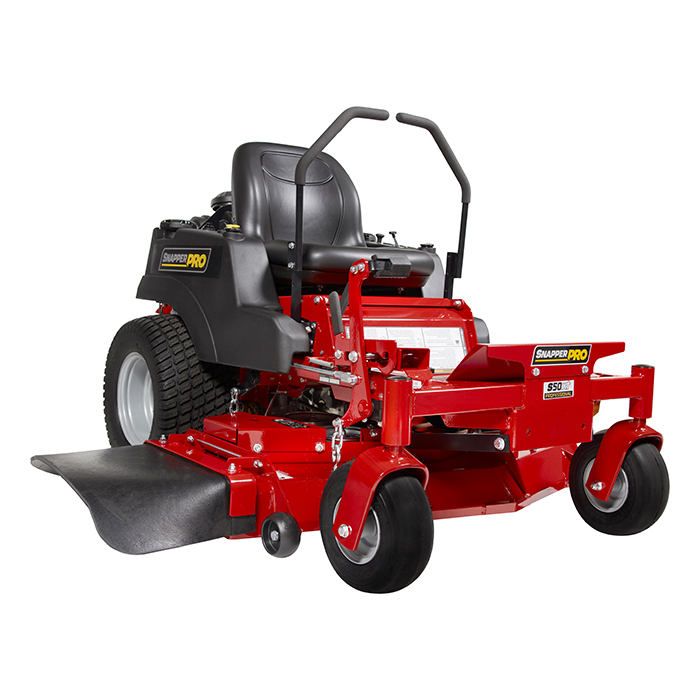

S50xt

The compact, easy-to use S50xt is designed specifically for the daily rigors of commercial mowing. This mower may be small in size, but it's big on features.

FIND A DEALER

Product Details

Designed for Commercial Use

The Briggs & Stratton Commercial Series engine features a patented advanced debris management system which deflects dirt and debris from the engine, and any remaining debris is trapped in the high-capacity, dual-sealing air cleaner cartridge.

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

Integrated Transmissions

Dual, commercial Hydro-Gear® ZT-4400® transaxels deliver unmatched power and durabilty.

Heavy-duty Spindles

Features greaseable, cast-aluminum spindles with 2.4" diameter ball bearings for longer useable life.

Accessibility

Quick removal of the floor pan provides easy access to the top of the deck when maintenance is needed.

Foot-operated Deck Lift

The easy-to-use deck lift takes the effort out of adjusting cut height. Cutting height ranges from 1.5" - 4.5" in 0.25" increments.

Engine Brand Briggs & Stratton Commercial Series™
HP (gross) * 25
Displacement (cc) 724
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 4
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-8
Ground Speed-Rev (mph) 0-4
Cutting Width (in) 36
Height-of-Cut (in) 1.5 - 4.5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1 Tapered
Drive Tires (in) 20 x 7-10
Caster Tires (in) 11 x 4-5
Overall Length (in) 69
Overall Width (in.) deflector down / deflector up (model) 52/37
Dry Weight (lbs) 688
Seat Package Contour seat
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM. ** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Briggs & Stratton Commercial Series™
HP (gross) * 25
Displacement (cc) 724
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 8
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-8
Ground Speed-Rev (mph) 0-4
Cutting Width (in) 48
Height-of-Cut (in) 1.5 - 4.5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1 Tapered
Drive Tires (in) 20 x 10-10
Caster Tires (in) 11 x 4-5
Overall Length (in) 69
Overall Width (in.) deflector down / deflector up (model) 64/49
Dry Weight (lbs) 724
Seat Package Contour seat
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM. ** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FX600V
HP (gross) * 19
Displacement (cc) 603
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 8
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-8
Ground Speed-Rev (mph) 0-4
Cutting Width (in) 36
Height-of-Cut (in) 1.5 - 4.5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction 10-gauge, fabricated, double top deck, double reinforced side skirts, overlap welded corners
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1 Tapered
Drive Tires (in) 20 x 7-10
Caster Tires (in) 11 x 4-5
Overall Length (in) 69
Overall Width (in.) deflector down / deflector up (model) 52/37
Dry Weight (lbs) 688
Seat Package Contour seat
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM. ** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Kawasaki® FX600V
HP (gross) * 19
Displacement (cc) 603
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 8
Transmission Dual, commercial Hydro-Gear® ZT-3100® transaxles with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-8
Ground Speed-Rev (mph) 0-4
Cutting Width (in) 48
Height-of-Cut (in) 1.5 - 4.5
Belts Single 5V-section Kevlar™ corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-aluminum, greaseable
Frame Rail 1.5 x 2, 11-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1 Tapered
Drive Tires (in) 20 x 10-10
Caster Tires (in) 11 x 4-5
Overall Length (in) 69
Overall Width (in.) deflector down / deflector up (model) 64/49
Dry Weight (lbs) 724
Seat Package Contour seat
Instrumentation Hour meter, Fuel level gauge
Controls/Safety Group Seat actuated engine kill, blade. Clutch safety switch, neutral and parking brake safety circuit
Parking Brake/Safety Circuit Internal Transaxle
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM. ** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

TURBO-PRO™ DOUBLE BAG SOFT TOP COLLECTION SYSTEM

The double bag collection system is simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Capacity: 8.5 cubic feet. (Available for 48'' models)

TURBO-PRO™ DOUBLE BAG HARD TOP COLLECTION SYSTEM

Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 10 cubic feet. (Available for 48'' models)
