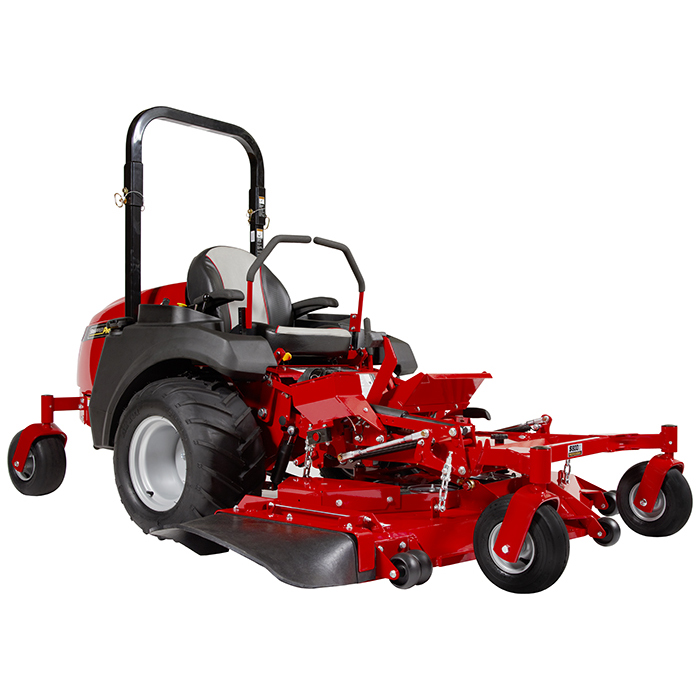

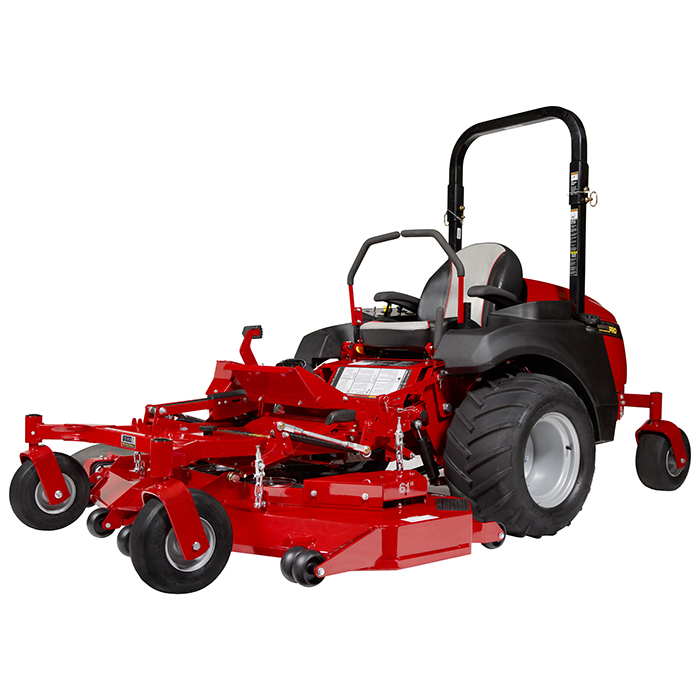

S800x

The S800x is the ideal machine for visibility and versatility. Its out-front design is perfect for trimming around trees, bushes and landscaped areas with ease. Be even more productive with our selection of accessory and attachment options.

FIND A DEALER

Product Details

iCD™ Cutting System

The innovative iCD™ Cutting System allows for better airflow, discharge and superior cut quality.

Precision Finish

The pivoting rear axle in conjunction with the floating front frame allows the S800x to follow the contours of the landscape for a precise, manicured finish.

Electric Deck Lift

Raise the deck with a flip-of-the-switch to make deck maintenance a snap.

Be Productive All Year

Optional 60" 2-stage snowblower and cab available.

Adjustable Cut-Height

Easily adjust cutting height from 1.5" - 5" in .25" increments

Powerful Vanguard Engine

Vanguard is the innovator and proven leader for BIG BLOCK V-twin engine power, performance and reliability.

Engine Brand Vanguard
HP (gross) * 31
Displacement (cc) 896
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 12
Transmission Dual pumps & wheel motors with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 61
Height-of-Cut (in) 1.5-5
Belts Single B-section Kevlar corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail C-channel, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.25 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6.5 (rear); 11 x 4 (front)
Overall Length (in) 115.5
Overall Width (in.) deflector down / deflector up (model) 73
Dry Weight (lbs) 1514
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 90-degree foldable
Instrumentation Hour meter
Controls/Safety Group Seat actuated engine kill, blade clutch safety switch, parking brake, safety circuit
Parking Brake/Safety Circuit Disk Type
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Engine Brand Vanguard
HP (gross) * 31
Displacement (cc) 896
Number of Cylinders 2
Starting Type Electric
Fuel Tank Capacity (gal) 12
Transmission Dual pumps & wheel motors with 7" mounted cooling fans
Ground Speed-Fwd (mph) 0-10
Ground Speed-Rev (mph) 0-5
Cutting Width (in) 72
Height-of-Cut (in) 1.5 - 5
Belts Single B-section Kevlar corded belts
Deck Construction iCD™ Cutting System with professional lawn striper
PTO Electric
Spindles Cast-iron, greaseable
Frame Rail C-channel, 7-gauge
Bearings Greaseable tapered caster yoke bearings
Finish Powdura® super durable power coat, a high gloss powder coat with elcellent impact resistance and outstanding salt and U.V. protection
Drive Axles 1.25 Tapered
Drive Tires (in) 24 x 12-12
Caster Tires (in) 13 x 6.5 (rear); 11 x 4 (front)
Overall Length (in) 115.5
Overall Width (in.) deflector down / deflector up (model) 88
Dry Weight (lbs) 1677
Seat Package Premium adjustable seat with armrests
Roll Over Protection System with retractable seatbelt Standard, 90-degree foldable
Instrumentation Hour meter
Controls/Safety Group Seat actuated engine kill, blade clutch safety switch, parking brake, safety circuit
Parking Brake/Safety Circuit Disk Type
Warranty (Engine) ** 3-Year limited manufacturer's warranty
Warranty (Balance of Machine) ** 4-Year (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Belts, tires, brake pads, battery, blades: 90 days.

* Power levels rated by engine manufacturer. Rated in accordance with SAEJ1940 at 3600 RPM or with SAE J2723 at 3600 RPM.** See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

BROOM

Clear debris and snow right down to the pavement. Bidirectional operation can be changed from the seat.

EZ DUMP XL™

The EZ Dump XL™ Collection System is ideal for larger jobs as it collects 14 cubic feet of material before needing to be emptied. Simply squeeze the handle and pull up to release the hopper right from your seat. The hopper is specially lined to ensure that all material is dumped each time, for increased productivity. The EZ Dump XL utilizes the FAST-Vac system and is available for S200xt, S200xtp, and S800x series mowers with 61" cutting widths. Capacity: 14 cubic feet.

MULCH KIT

Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.

SUSPENSION SEAT

Suspension seat available for optimal comfort.

SUSPENSION SEAT INSERT

Add this to the premium adjustable seat for increased comfort.

FLAT-FREE CASTER TIRE

Run all day with no flats, eliminates downtime. Standard on select models.

SNOWBLOWER / CAB

Get ready for winter with this 60" 2-stage snowblower and cab.
